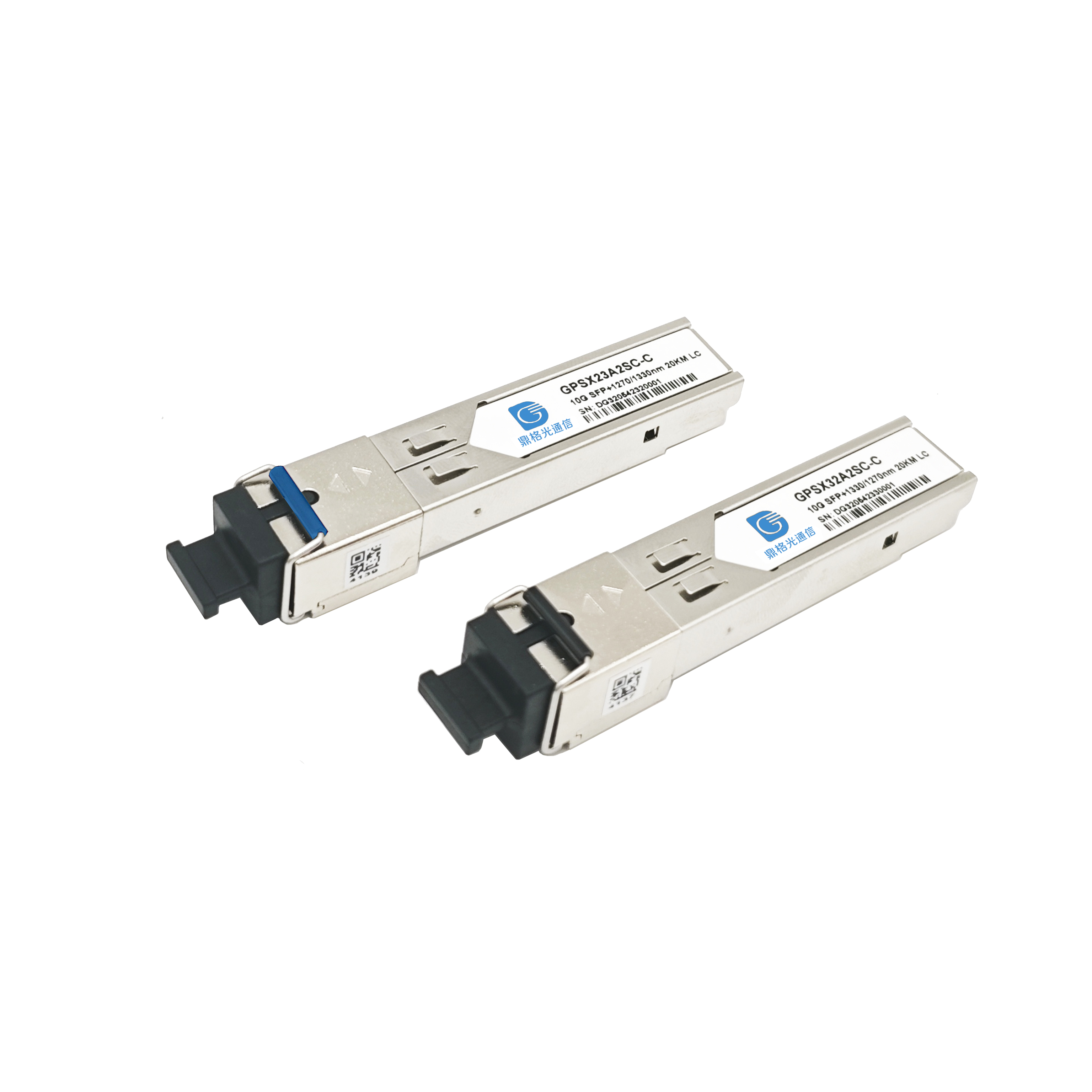

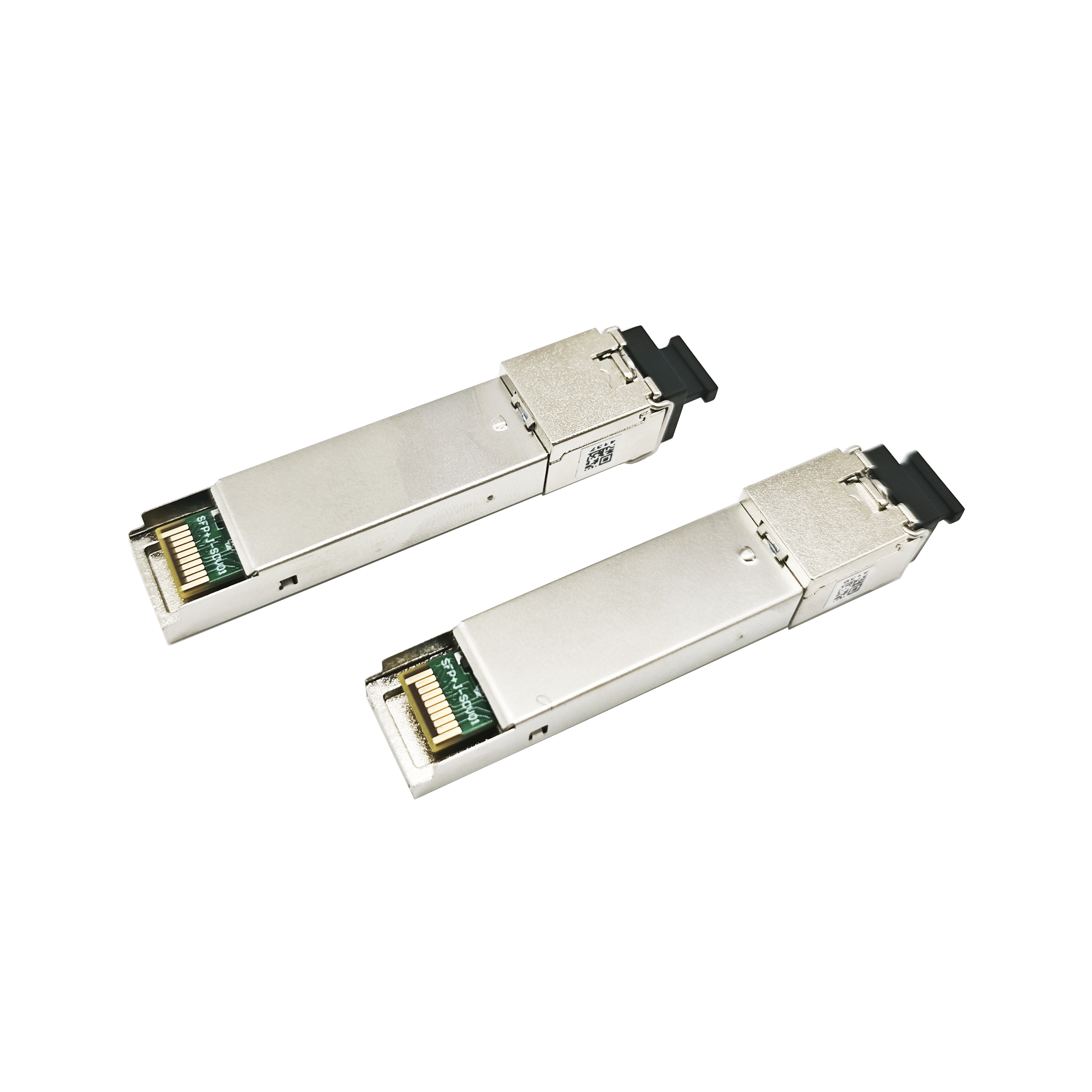

SFP+ 10G BiDi U20

.：	*Supports 9.95 to 10.3Gb/s bit rates
.：	*Low power consumption, < 1W
.：	*Simplex SC Connector
.：	*Digital Diagnostic Monitor Interface
.：	*Hot pluggable SFP+ footprint
.：	*Optical interface compliant to IEEE 802.3ae 10GBASE-LR
.：	*Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
.：	*Electrical interface compliant to SFF-8431
.：	*Applicable for 20km SMF connection
.：	*Operating case temperature （C：0 to 70 °C，I：-40 to 85 °C ）

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
‍GB1X23A2L‍	SC	SMF	20km	10G	NRZ	SFP+ BIDI	C&I

Specification parameter ：

Compatible Brand	SFP+-10G-BiDi-U20	Brand	DGtel
Package	SFP+	Data rate	11.3168Gbps
Wavelength	1270nm-TX/1330nm-RX	Max Distance	20km
Conn Type	SC	Fiber mode Type	Single mode
Transmitter Type	DFB	Receiver Type	PIN
Tx power	-8.2~0.5dBm	Sensitivity	-14.4dBm
Power budget	6.2dB	Overload	<0.5dBm
Power Consumption	≤1W	Extinction Ratio	>3.5dB
DDM/DOM	support	Temperature Range	0~70°C/-40~85°C
Warranty Period	3 years	Modulation (Optic)	NRZ
MSA Standard	SFP+ MSA, CPRI, eCPRI
