Product Feature Description:

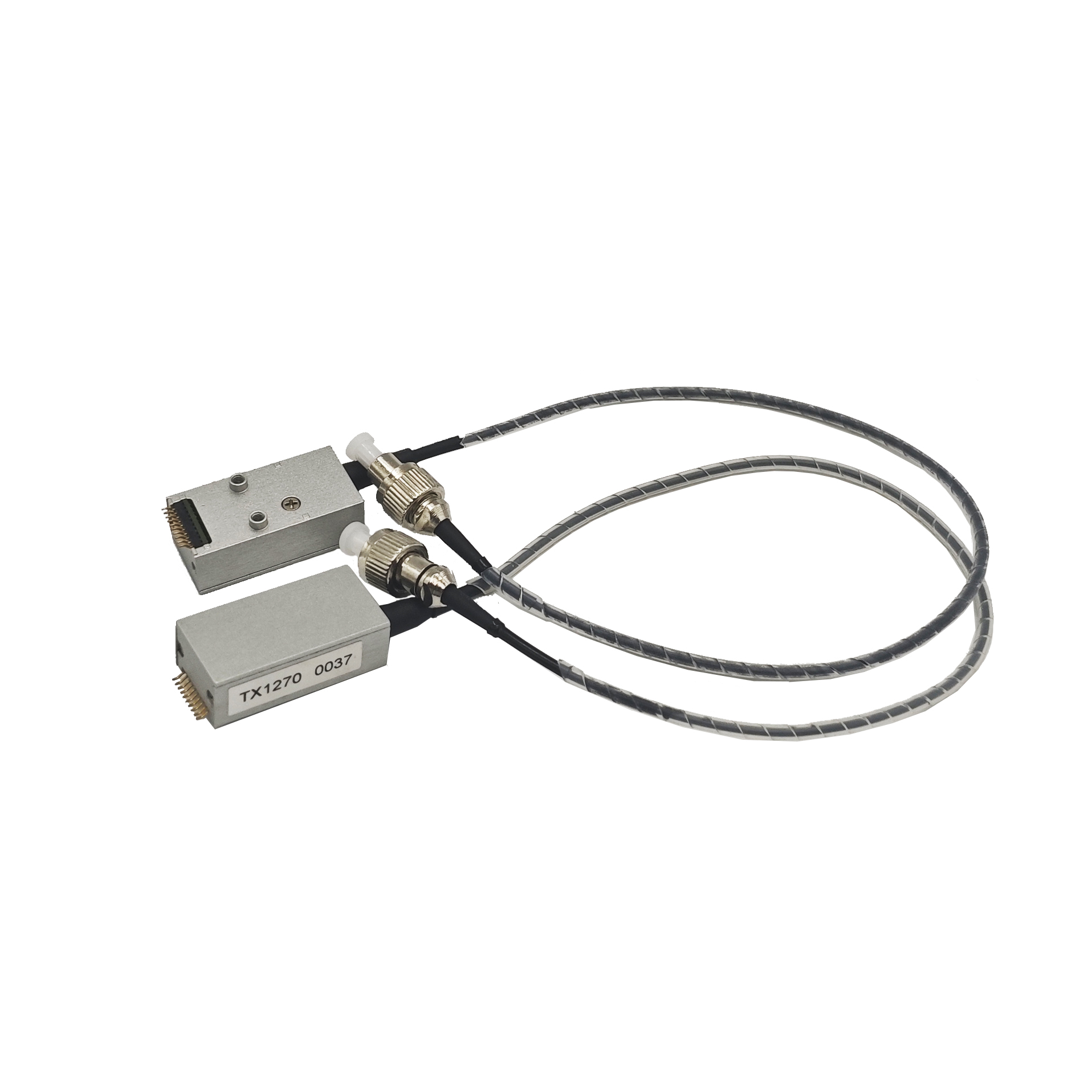

This optical module product integrates the transmitting and receiving parts. The transmitting part uses a single 1270nm band optical emitting component to convert the input differential electrical signal into an optical signal, with the differential electrical signal standard being CML level. The receiving part uses a single channel 1330nm band optical receiving component to convert the received optical signal into a differential electrical signal, and the output electrical signal interface level standard is CML. The transmission and reception channels can operate at a speed of 10.3125bps and are backward compatible. The fiber length and optical connector type can be customized according to user needs.
The module adopts an all metal structure with a compact structure, using 10 pin pin electrical pins, and has the functions of transmitting channel shutdown and receiving channel monitoring. The working temperature range is -40 ℃ to 85 ℃.
Application Scenario:
● 10GBASE-LR
● 10 Gigabit Ethernet switch, FC switch
● Sonet/SDH and other digital optical transmission links
● High speed serial bus for on-board/inter board interconnection
● High reliability and high data rate point-to-point fiber optic communication
Specifications:
Model | DGA230J10G | Brand | DGtel |
Wavelength | 1270/1330 | Transmission Rate | 10Gbps |
Operating Temperature | -40～85 ℃ | Transmission Distance | 10km |
Power Consumption | 1W | Optical Power | -2～2 dBm |
| Extinction Ratio | ＞3.5 dBm | Reception Sensitivity | ＜-11 dBm
|
