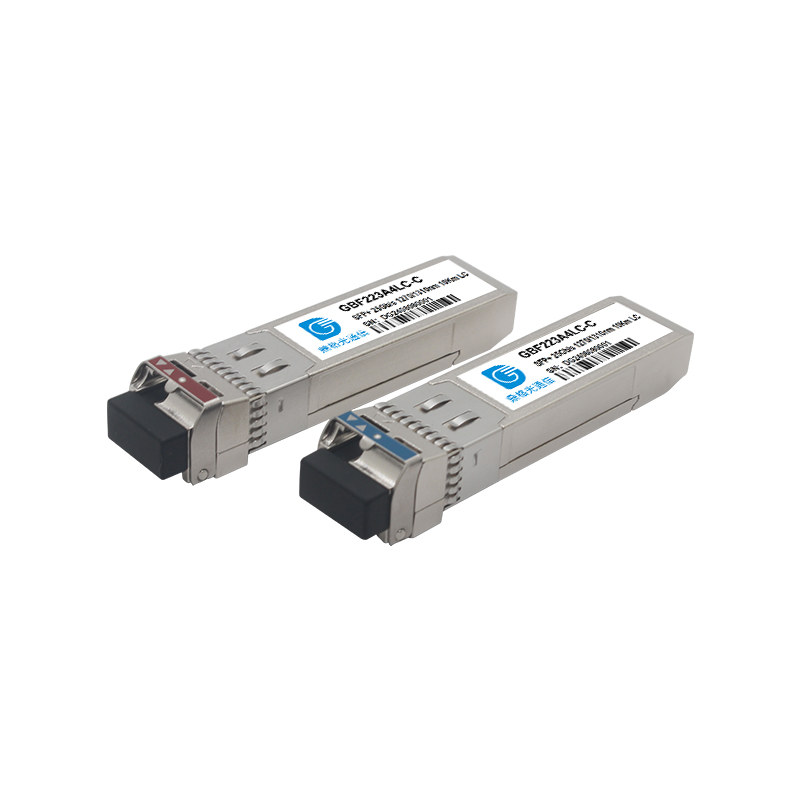

SFP28 25G BiDi U40

.：	*Supports24.3 to 26.5Gb/s bit rates
.：	*Low power consumption, < 1.5 W
.：	*Simplex LC Connector
.：	*Digital Diagnostic Monitor Interface
.：	*Hot pluggable SFP+ footprint
.：	*Specifications compliant with SFF 8472
.：	*1270nm DFB transmitter and APD Receiver
.：	*Electrical interface compliant to SFF-8431
.：	*Applicable for 40km SMF connection
.：	*Operating case temperature （C：0 to 70 °C，I：-40 to 85 °C ）

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GB2X23A4L	LC	SMF	40KM	25G	NRZ	SFP28 BIDI	C&I

Specification parameter:

Compatible Brand	SFP28-25G-BiDi-U40	Brand	DGtel
Package	SFP28	Data rate	25Gbps
Wavelength	1270nm-TX/1310nm-RX	Max Distance	40km
Conn Type	Single work LC	Fiber mode Type	Single mode
Transmitter Type	DFB	Receiver Type	APD
Tx power	0~6dBm	Sensitivity	<-18dBm
Warranty Period	3 years	Overload	<-7dBm
Power Consumption	≤2W	Extinction Ratio	3.5dB
DDM/DOM	support	Temperature Range	0~70°C
MSA Standard	MSA, CPRI, eCPRI	Modulation (Optic)	NRZ
CDR(W/O)	support
