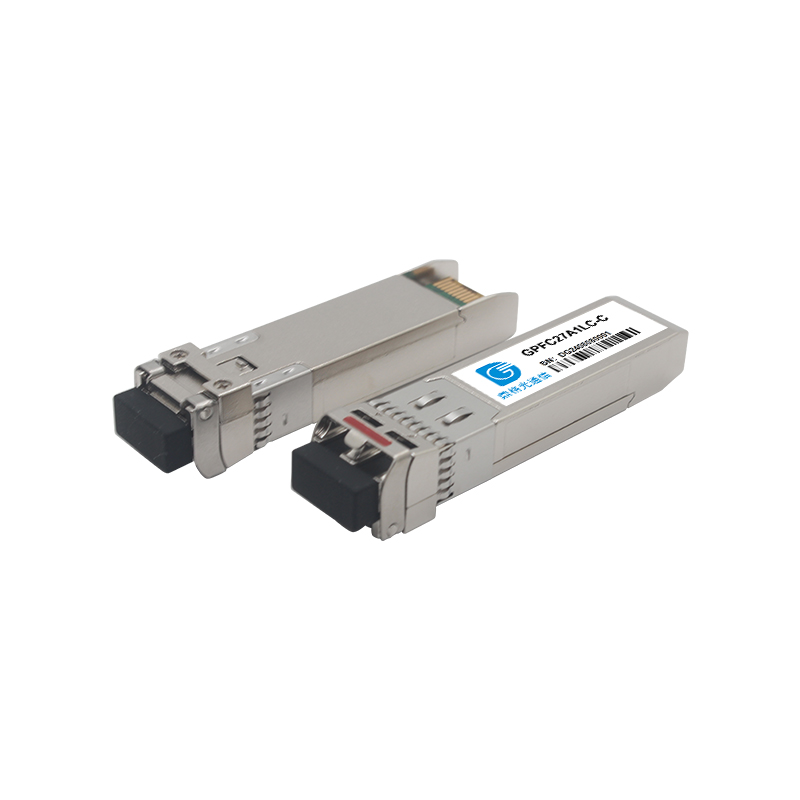

SFP28 25G CWDM 10km

.：	*Supports 24.33 to 25.78Gb/s bit rates
.：	*Applicable for 10Km SMF connection
.：	*compliant to SFF-8402 for SFP28 solution
.：	*High transmission margin
.：	*Digital Diagnostic Monitor Interface with SFF-8472
.：	*Low power consumption<1.2W
.：	*Hot pluggable SFP+ footprint
.：	*Single 3.3V power supply
.：	*1270nm~1370nm CWDM transmitter, PIN receiver
.：	*Operating case temperature （C：0 to 70 °C，I：-40 to 85 °C ）

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GD2XCXXA1L	LC	SMF	10KM	25G	NRZ	SFP28 CWDM	C&I
Remark	Average xx: 27=1270 nm, 29=1290 nm... 59=1590 nm, 61=1610 nm

Specification parameter：

Compatible Brand	SFP28-25G-CWDM-10km	Brand	DGtel
Package	SFP28	Data rate	25Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	10km
Conn Type	Duplex LC	Fiber mode Type	Single mode
Transmitter Type	DFB	Receiver Type	PIN
Tx power	-4.2~2dBm	Sensitivity	-13dBm
Warranty Period	3 years	Overload	<0dBm
Power Consumption	≤1.2W	Extinction Ratio	>3.5dB
DDM/DOM	support	Temperature Range	0~70°C
MSA Standard	MSA, CPRI, eCPRI	Modulation (Optic)	NRZ
CDR(W/O)	support
