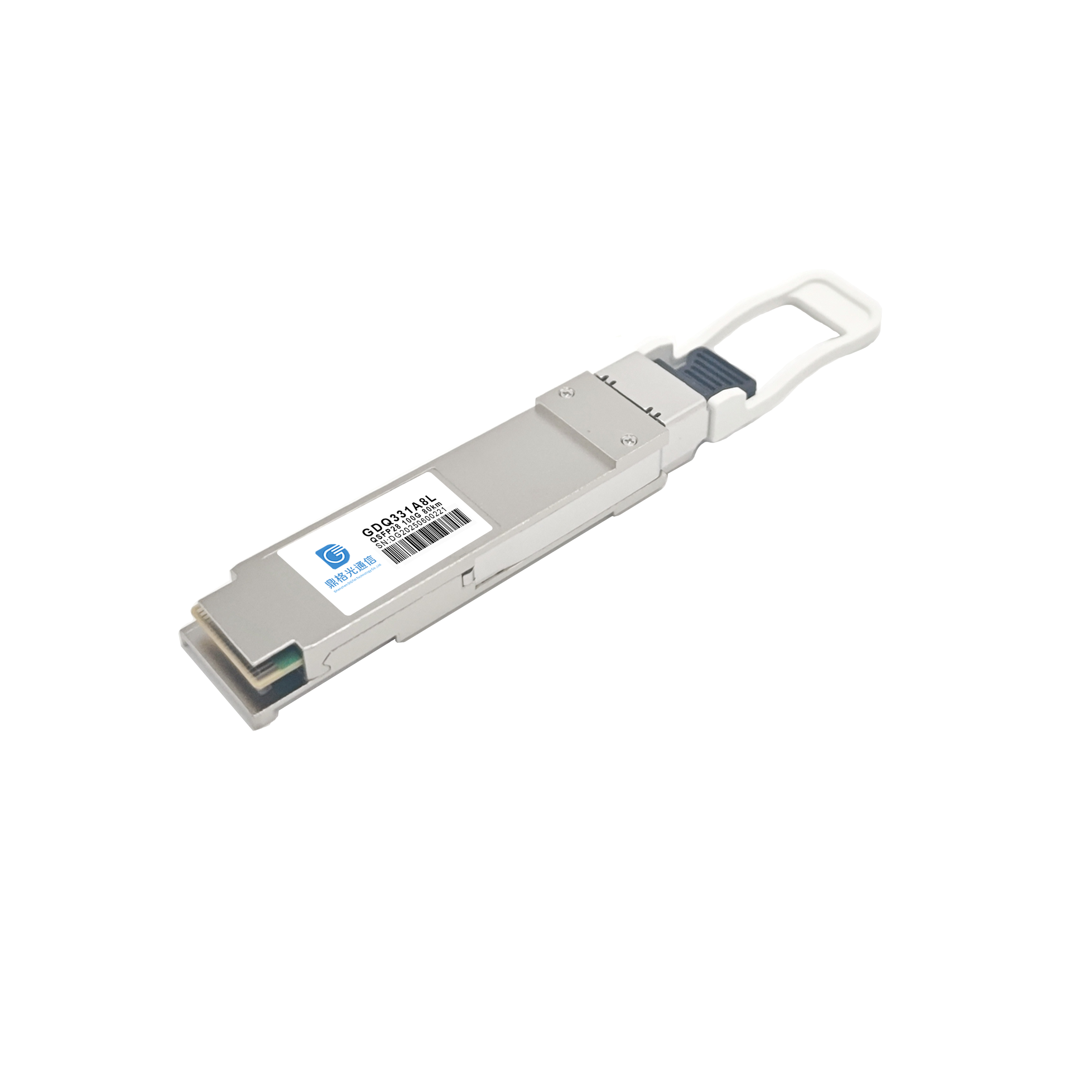

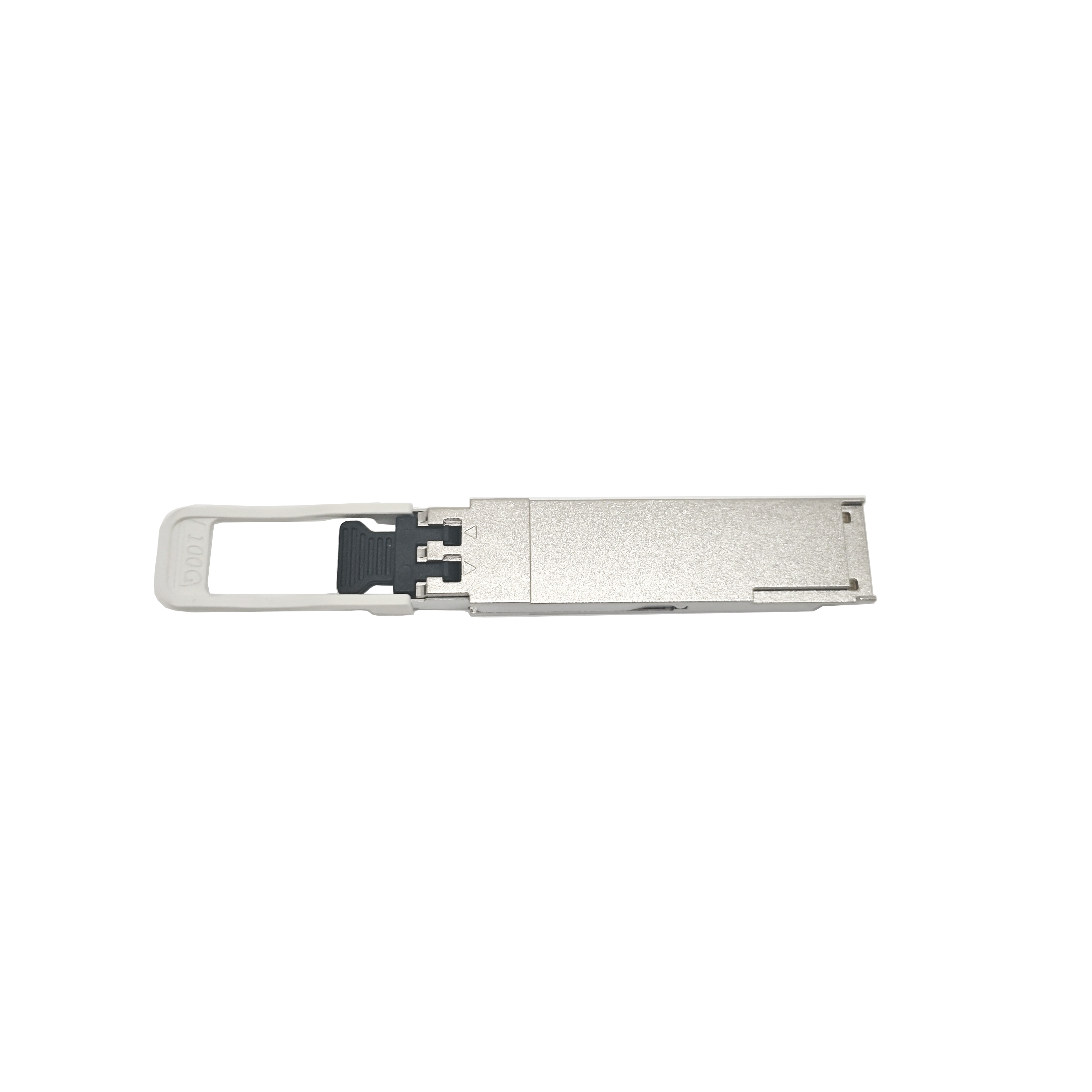

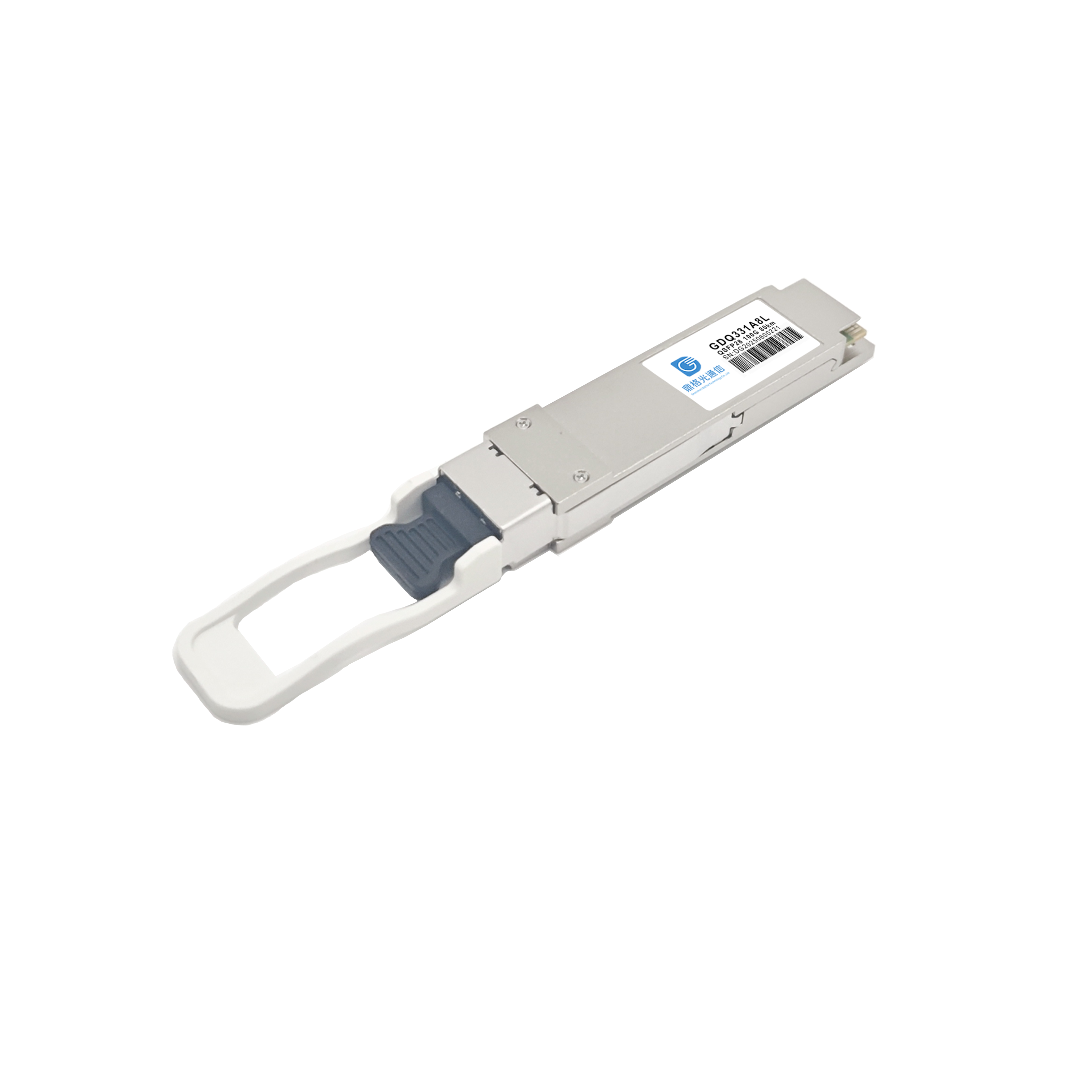

QSFP28 100G ZR4

.：	*Supports 100GBASE 100GE
.：	*Lane bit rate 25.78 Gb/s 100GE
.：	*Up to 80km transmission on SMF
.：	*LAN WDM laser and PIN receiver with SOA
.：	*Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
.：	*High speed I/O electrical interface (CAUI-4)
.：	*I2C interface with integrated Digital Diagnostic monitoring
.：	*Typical power consumption 6.5 W
.：	*Single +3.3V power supply
.：	*Operating case temperature （C：0 to 70 °C)

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GDQ331A8L	LC	SMF	80Km	100G	NRZ	QSFP28 ZR4	C

Specification parameter：

Compatible Brand	QSFP28-100G-ZR4	support	DGtel
Package	QSFP28	Data rate	100gbps
Wavelength	1310nm	Max Distance	80km
Conn Type	Duplex LC	Fiber mode Type	single mode
Transmitter Type	EML	Receiver Type	SOA+PIN
Tx power	2.0~6.5dBm	Sensitivity	-28dBm
Warranty Period	3 years	Overload	<-7dBm
Power Consumption	≤7W	Extinction Ratio	>6dB
DDM/DOM	support	Temperature Range	0~70°C
MSA Standard	IEEE 802.3ba, QSFP28 MSA	Modulation (Optic)	NRZ
CDR(W/O)	support	FEC inside (W/O)	support
