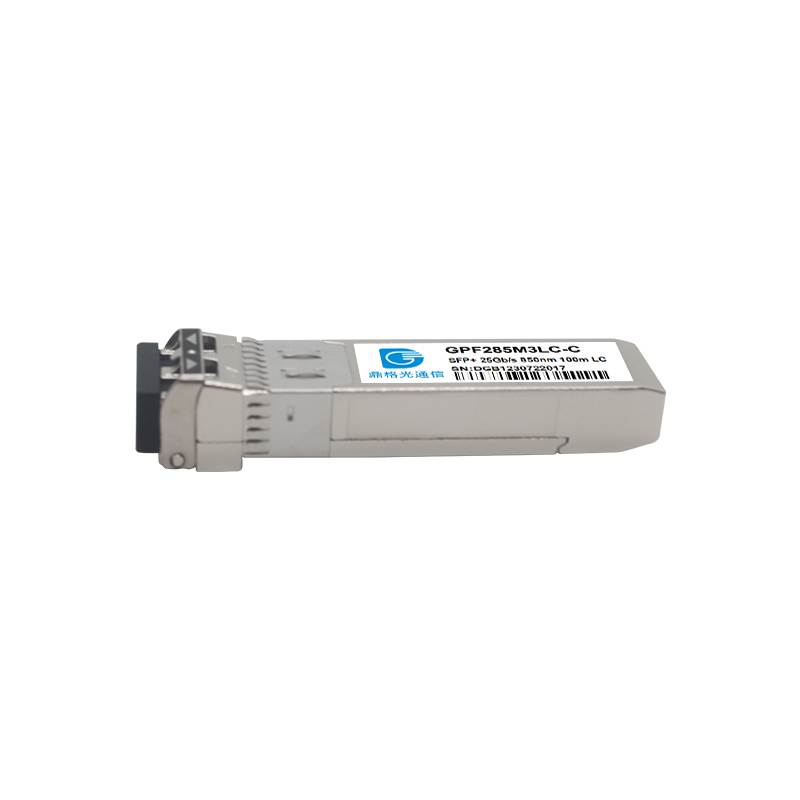

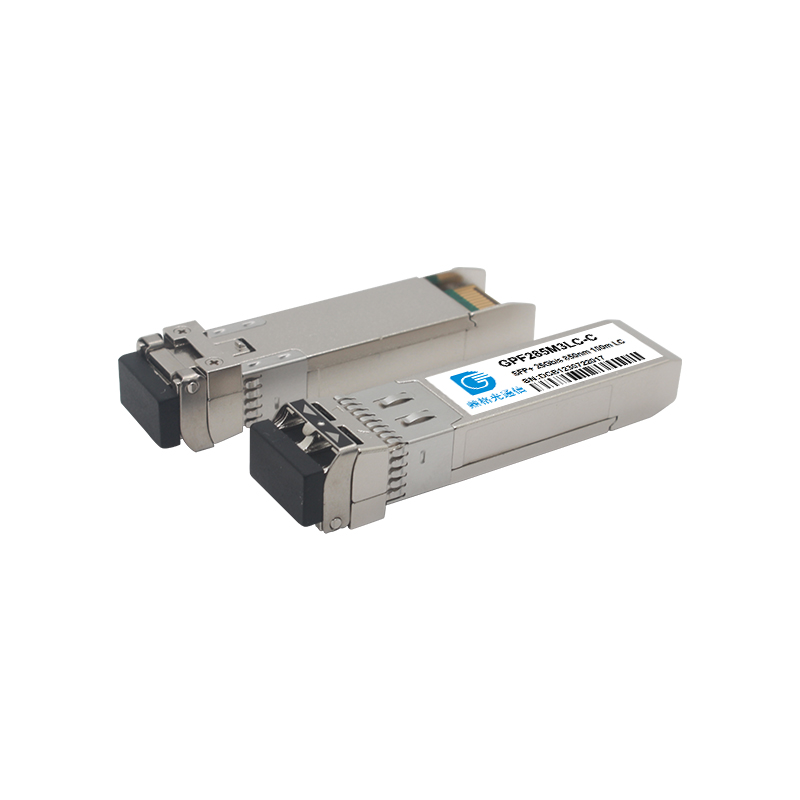

SFP28 25G SR300ｍ

.：	＊Supports up to 25.78Gb/s bit rates
.：	＊Built-in dual CDR
.：	＊Low power consumption, < 1.2W
.：	＊Digital Diagnostic Monitor Interface
.：	＊Hot pluggable SFP28 footprint
.：	＊Compliant with SFP28 Specification SFF-8402e
.：	＊850nm VCSEL transmitter, PIN photo-detector
.：	＊Electrical interface compliant to SFF-8431
.：	＊Distance up to ３00m @50 / 125 um OM4
.：	＊Operating case temperature （C：0 to 70 °C，I：-40 to 85 °C ）

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GD2X85M3L	LC	OM3	300m	25G	NRZ	SFP28	C&I

Specification parameter：

Compatible Brand	SFP28-25G-SR/300M	Brand	DGtel
Package	SFP28	Data rate	25.78Gbps
Wavelength	850nm	Max Distance	300m
Conn Type	Duplex LC	Fiber mode Type	Multimode
Transmitter Type	VCSEL	Receiver Type	PIN
Tx power	-6.4~2.4dBm	Sensitivity	<-10.3dBm
Warranty Period	3 years	Overload	<0dBm
Power Consumption	≤	Extinction Ratio	2dB
DDM/DOM	1W	Temperature Range	0~70°C/-40~80°C
MSA Standard	SFP28 MSA, SFF-8472, SFF-8024, SFF-8431, SFF-8432	Modulation (Optic)	NRZ
CDR(W/O)	support
