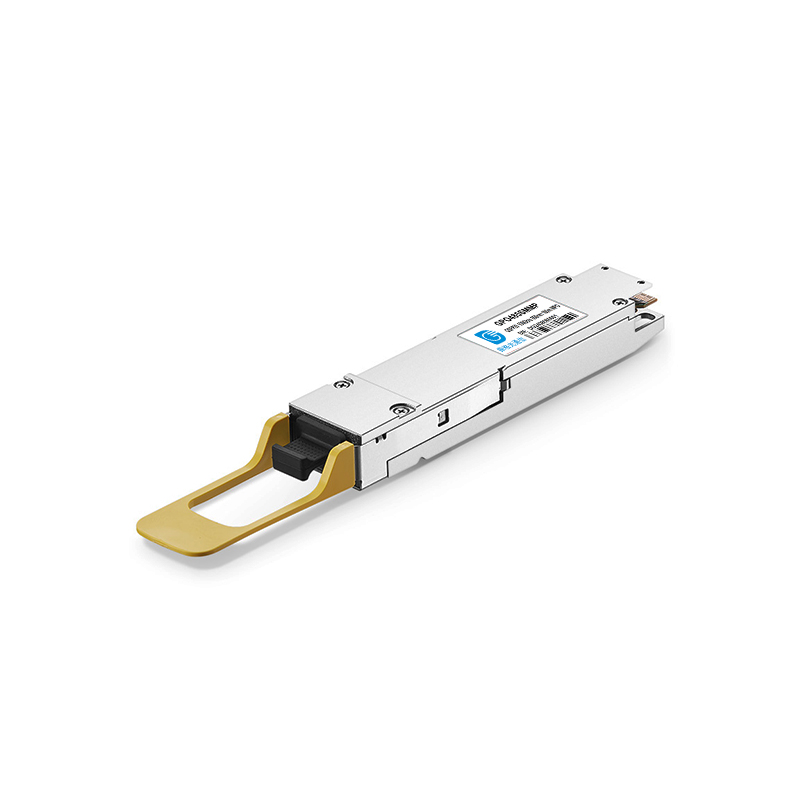

OSFP 400G DR4

.：	* Hot swappable OSFP external dimensions
.：	* The maximum link length on single-mode fiber (SMF) is 500m
.：	* Compliant with IEEE 802.3 standard
.：	* 4x100G PAM4 EML 1310nm transmitter
.：	* Single channel 3.3V power supply
.：	* MPO-12 interface type
.：	* Compliant with RoHS environmental standards (lead-free)
.：	* Operating temperature: 0 ° C~+70 ° C

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GDO4DR4M5M	MPO-12 (APC)	SMF	500m	4x100Gbps	PAM4	OSFP 400G DR4	C -
Remark

Specification parameter：

CompatibleBrand	OSFP-400G-DR4	Brand	DGtel
Package	OSFP	Data rate	400Gbps
Wavelength	1310nm	Max Distance	500M
Conn Type	MPO-12/APC	Fiber mode Type	single mode
Transmitter Type	DFB	Receiver Type	PIN
Tx power	-2.9~4dBm	Sensitivity	-5.9dBm
Link budget		Overload	5dBm
Power Consumption	≤10W	Extinction Ratio	>3.5dB
DDMI	support	Temperature Range	0~70°C
Modulation (Electric)	8x 53.125Gb/s PAM4	Modulation (Optic)	4x 106.25Gb/s PAM4
CDR(W/O)		FEC inside (W/O)
MSA Standard		Warranty Period	3 years
