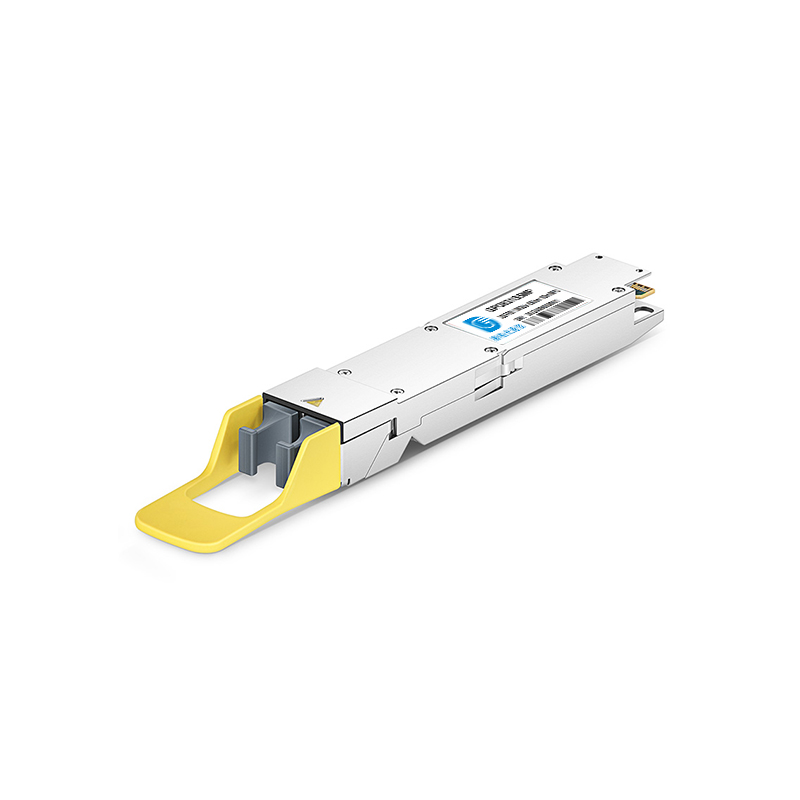

OSFP 800G DR8

.：	* High speed connection complies with IEEE 802.3ck standard and IEEE 802.3cu-2021
.：	* Compliant with the hot swappable OSFP MSA standard
.：	* Supports 2x400G or 8x100G splitter to achieve higher port density
.：	* 8x106.25G PAM4 Rescheduled 800GAUI-8 Electrical Interface
.：	* Connect the new 800G station to the existing 400G station through 2x400G distribution lines
.：	* Dual MPO-12/APC Single Mode
.：	* Compliant with RoHS environmental standards (lead-free)
.：	* Operating temperature: 0 ° C~+70 ° C

产品详情

Product PN	Interfaces	Fiber	Reach	Data Rate	Encoding	Form Factor	Temperature
GDO8DR8M5M‍	2xMPO12	SMF	500 m	8x100Gbps	PAM4	OSFP 800G DR8	C -
Remark

Specification parameter：

CompatibleBrand	OSFP-800G-DR8	Brand	DGtel
Package	OSFP	Data rate	850Gbps (8x 106.25Gbps)
Wavelength	1310nm	Max Distance	500m
Conn Type	双 MTP/MPO-12 APC	Fiber mode Type	single mode
Transmitter Type	EML	Receiver Type	PIN
Tx power	-2.9~4dBm	Sensitivity	-5.9dBm
Link budget		Overload	5dBm
Power Consumption	≤16.5W	Extinction Ratio	>3.5dB
DDMI	support	Temperature Range	0~70°C
Modulation (Electric)		Modulation (Optic)	PAW4
CDR(W/O)	DSP	FEC inside (W/O)
MSA Standard	IEE802.3ck, IEEE 802.3cu, OSFP MSA	Warranty Period
